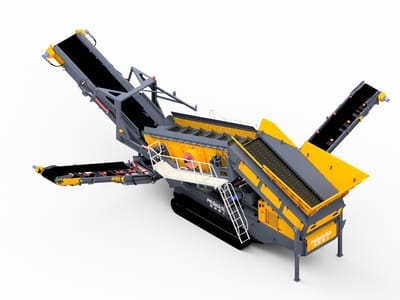

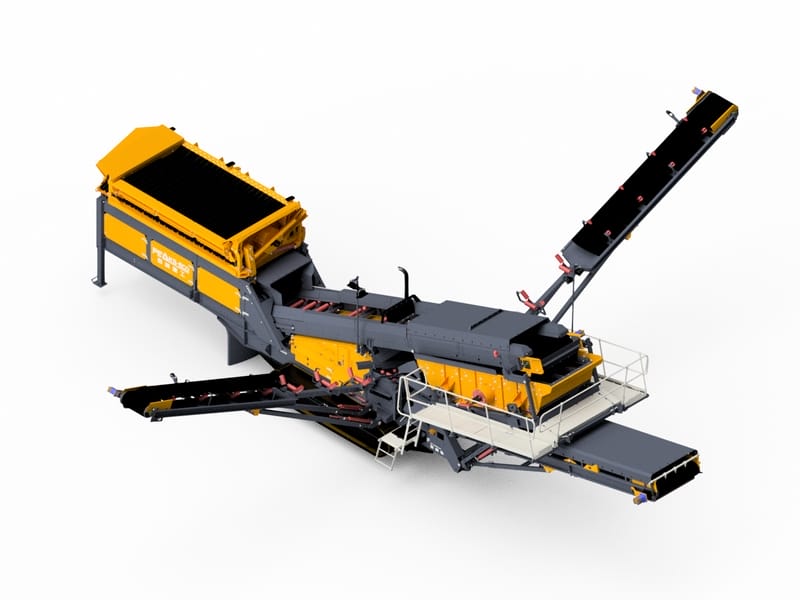

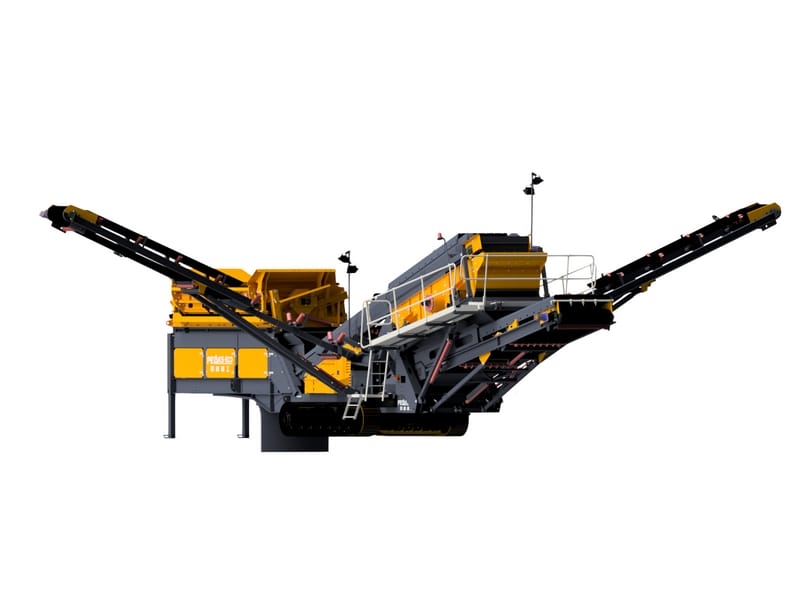

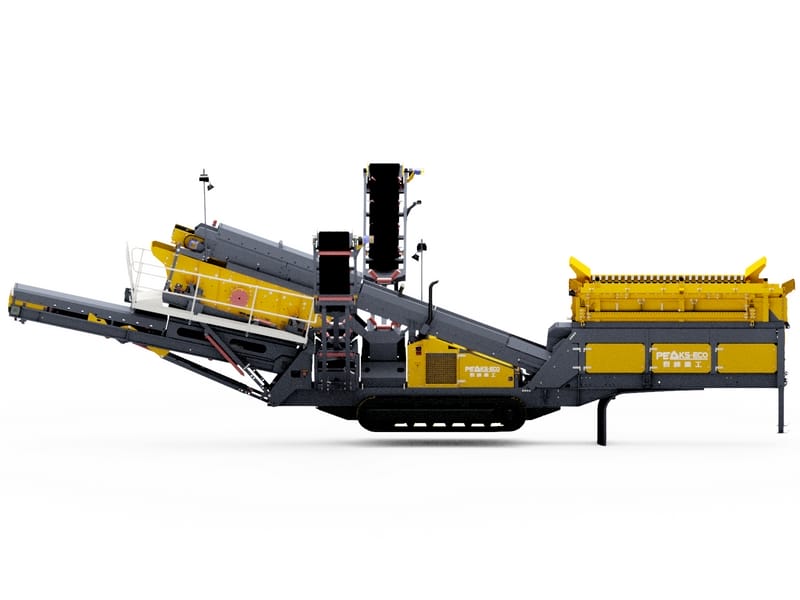

PEAKS-ECO mobile screening plant is a highly efficient and technologically advanced machine offering full autonomous operation. Designed as a compact, mobile screening plant, it can easily access processing sites and perform screening tasks under a variety of working conditions. It is well-suited for applications such as quarrying, demolition waste sorting, mining, and more.
Equipped with a track system, this mobile screening plant provides excellent mobility and stability. Its high-capacity vibrating screen, supported by an integrated generator, ensures reliable and efficient screening performance, making it an ideal solution for all screening needs.
| Model |
|
|
|
|
|
|
|
| Max. particle size (mm) | 150 | 150 | 150 | 150 | 150 | 500 | 150 |
| Screening area (mm) | 6500×2000 | 6500×2000 | 6500×2000 | 6000×2000 | 6000×2000 | 5000×1550 | 6000×1550 |
| Number of screen decks | 3 | 3 | 3 | 3 | 3 | 2 | 3 |
| Main screen power (kW) | 26 | 26 | / | 30 | 30 | / | / |
| Capacity (t/h) | 180-350 | 180-350 | 180-350 | 200-500 | 200-500 | 200-500 | 180-350 |
| Working power ( kw ) | 62.5 | 62.5 | / | 72.5 | 85.5 | 93 | / |
| Dimensions (L×W×H) (m) | 15.0×4.0×4.0 | 15.0×4.0×4.0 | 15.0×4.0×4.0 | 19.0×4.0×4.0 | 19.0×4.0×4.0 | 19.0×4.0×4.0 | 20.0×3.5×4.0 |
| Machine weight (t) | 33 | 33 | 33 | 38 | 41 | 35 | 37 (standard configuration) 40 (advanced configuration) |
