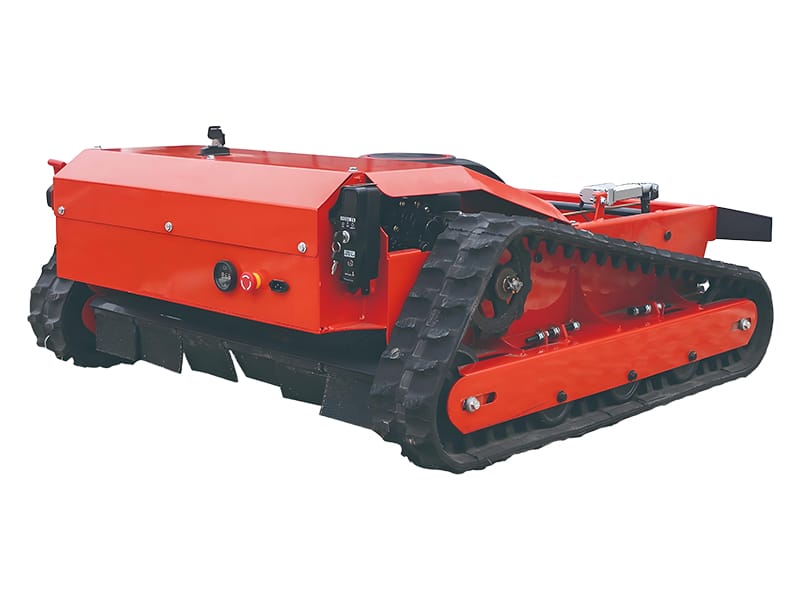

Designed for performance in challenging conditions, our crawler lawn mower is equipped with a powerful 6.5-horsepower gasoline engine that offers easy starting, stable output, and dependable operation with a low failure rate—ideal for extended use in demanding environments.
Its specialized wear-resistant rubber track ensures excellent traction and durability. Built to handle tough conditions, the track system provides superior anti-skid performance, protects ground surfaces from damage, and can effortlessly climb slopes up to 20°, making it the perfect choice for uneven or sloped landscapes.
| Engine model | B&S |
| Rated power | 6.5HP |
| Cylinder | single |
| Intake method | natural aspiration |
| Emissions standards | EURO5/EPA |
| Fuel capacity | 3.5L |
| Oil capacity | 0.6L |
| L×W×H | 1517x870x1278mm |
| Cargo box volume | 0.22m³ |
| Hydraulic oil No. | 46# anti-wear hydraulic oil |
| Hydraulic oil tank capacity | 7L |
| Grad ability | 20° |
| Min. ground clearance | 85mm |
| Min. turning radius | 950mm |
| Crawler center distance | 520mm |
| Travel speed | 1.7/3.5(km/h) |
| Travel motor maximum torque | 805Nm |
| Travel motor maximum working pressure | 20MPa |
| Travel motor displacement | 200cc |
| Travel motor brand | Like Hydraulic |
| Vehicle weight | 400kg |
| Maximum load | 500kg |
