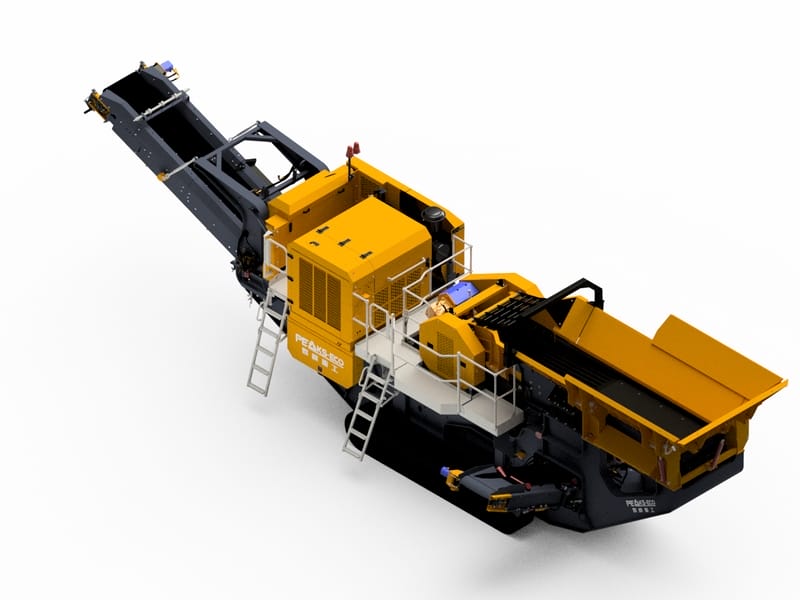

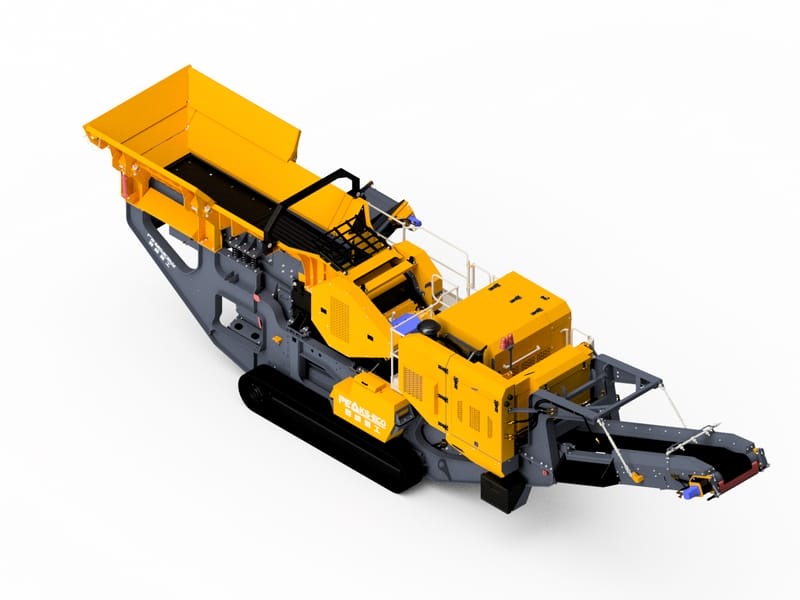

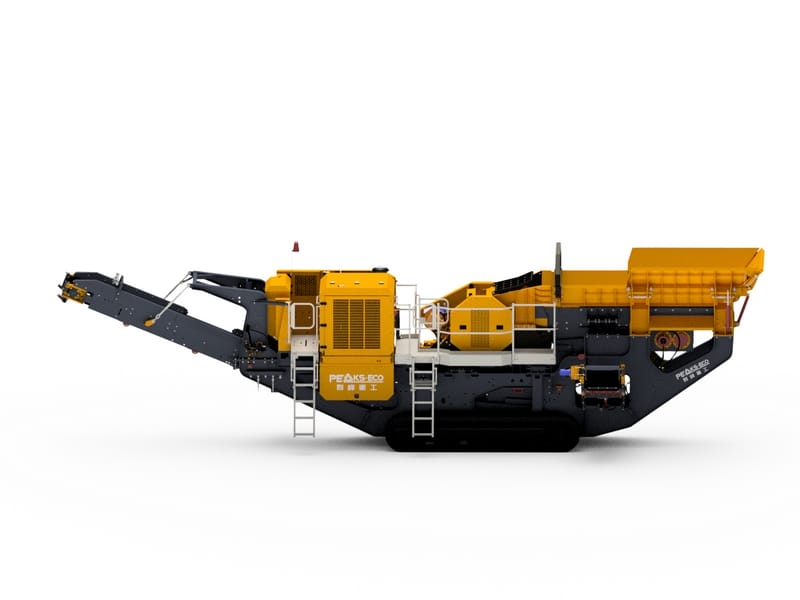

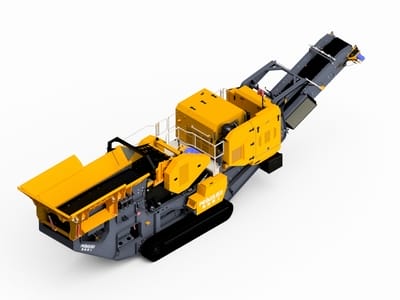

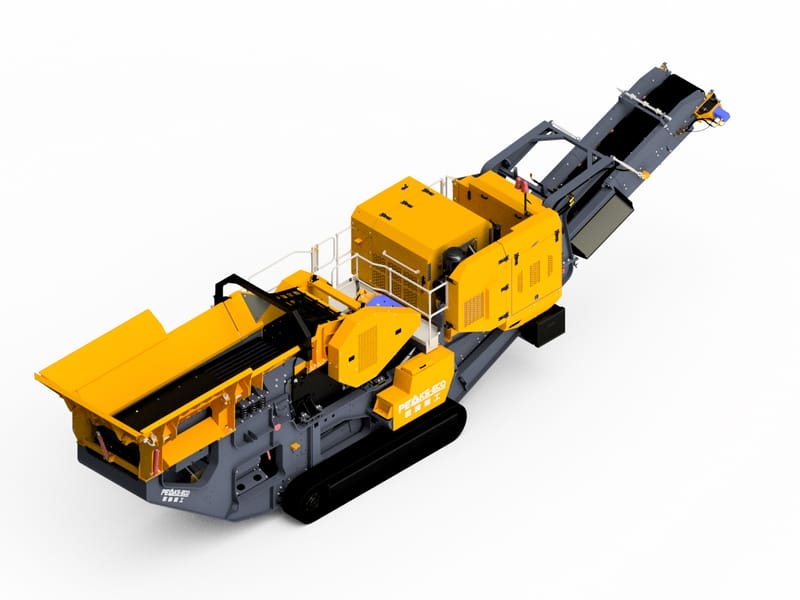

PEAKS-ECO mobile jaw crusher combines a feeder, jaw crusher, and belt conveyor into a single, integrated unit, eliminating the hassle of complex on-site assembly and significantly reducing setup time. Its smart design offers exceptional flexibility, making it easy to maneuver not only on standard roads but also within the challenging environments of crushing sites.
Designed to enhance performance, our mobile jaw crusher offers outstanding versatility and ease of movement. Its compact size allows for convenient transportation, while its durable construction ensures reliable performance even in the most demanding conditions. This mobility saves valuable time and ensures quick, effortless access to work areas, helping you maximize productivity.
| Model |
|
|
|
|
|
|
| Max. feeding size (mm) | 560 | 560 | 630 | 630 | 700 | 800 |
| Feeding height (mm) | 4150 | 4200 | 4150 | 4200 | 4300 | 4800 |
| Crusher model | C106 | C106 | JW42 | JW42 | C116 | C120 |
| Crusher power (kW) | 110 | 110 | 110 | 110 | 132 | 160 |
| Discharge size (mm) | 70-200 | 70-200 | 75-175 | 75-175 | 70-200 | 70-200 |
| Capacity (t/h) | 130-500 | 130-500 | 135-380 | 135-380 | 150-520 | 175-610 |
| Working power (kW) | 138 | 142 | 138 | 142 | 168 | 207 |
| Dimensions (L×W×H) (m) | 15.5×4.0×4.0 | 16.5×3.5×4.0 | 15.5×4.0×4.0 | 16.0×3.5×3.5 | 17.0×4.0×4.0 | 18.0×4.0×4.0 (assembled) |
| Machine weight (t) | 50 | 50 | 50 | 50 | 60 | 75 |
