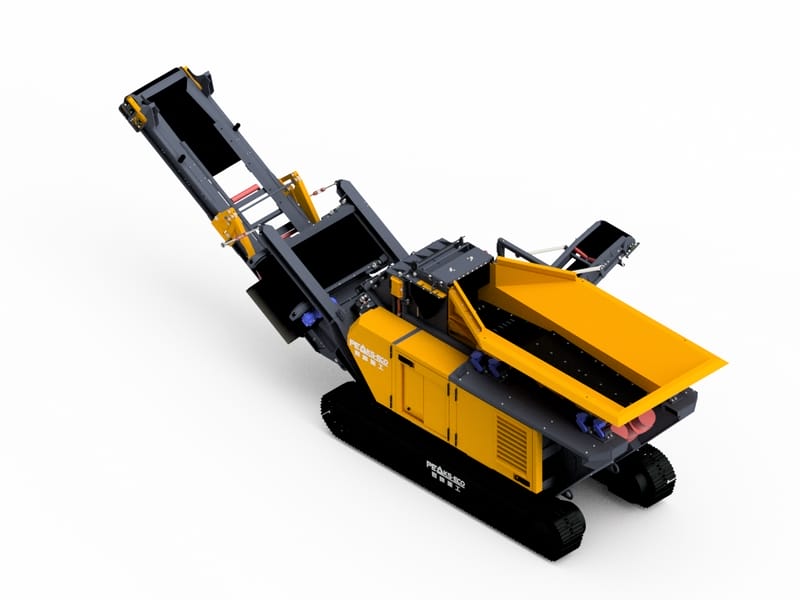

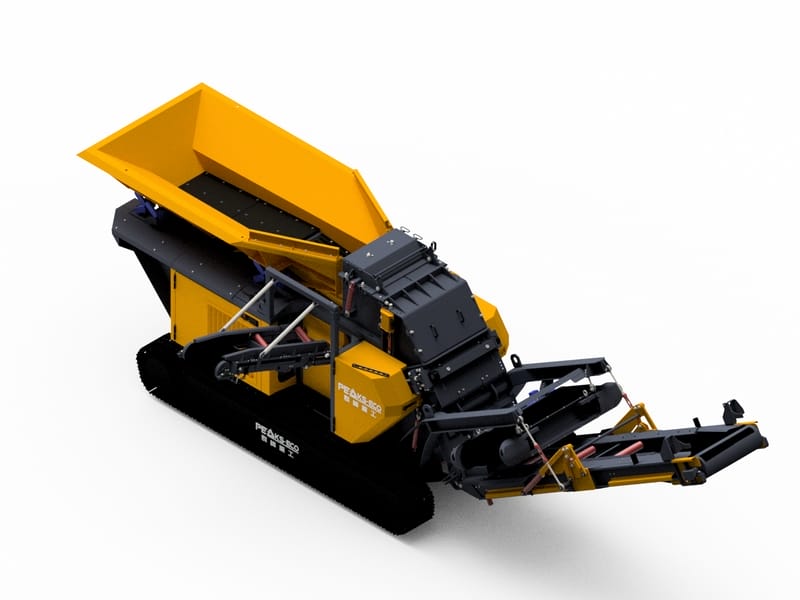

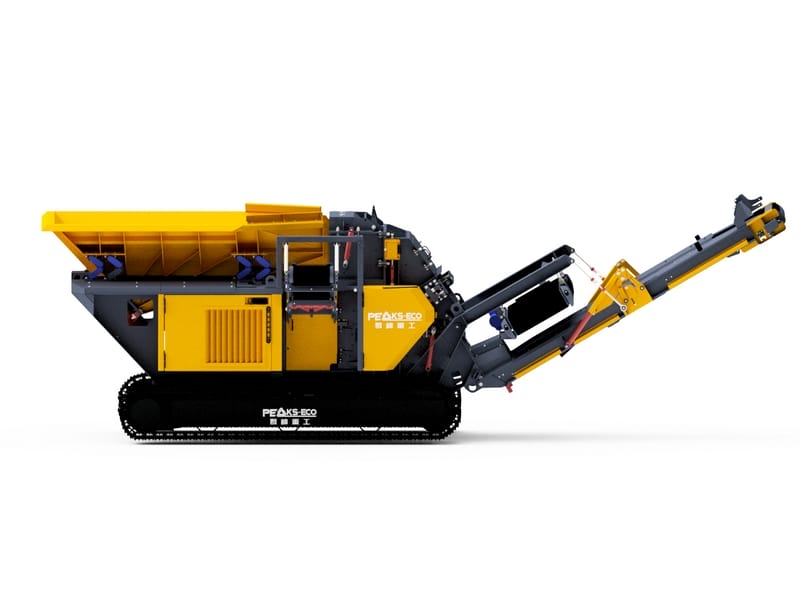

PEAKS-ECO mobile impact crusher integrates crushing and screening equipment for quick and easy on-site installation. Its design allows it to operate not only directly at the worksite but also from nearby locations or staging areas – the machine comes with a standard wireless remote control that offers full plant operation capabilities and tracking, making it easy to maneuver around the job site. The ability to maneuver significantly reduces material transportation costs.
The machine offers a range of power options, including connection to an external power source as well as dual-fuel capability (electric and diesel), enabling it to adapt to various working conditions. It also incorporates a variable frequency drive system that enables low-current startups to protect the motor from overload, promotes stable performance, and enhances energy efficiency.
Our customers are free to choose from a variety of configurations to suit different raw materials, project sizes, and finished product requirements.
| Model |
|
|
|
|
|
|
| Max. feeding size (mm) | 500 | 500 | 600 | 700 | 600 | 600 |
| Feeding height (mm) | 3780 | 3780 | 4020 | 4300 | 3750 | 3800 |
| Crusher model | CF250 | CF250 | 1213 | KI-130 | CF400 | CF400 |
| Crusher power (kW) | 250 | 250 | 250 | 250 | 315 | 315 |
| Capacity (t/h) | 150-360 | 150-360 | 150-360 | 200-400 | 180-650 | 180-650 |
| Working power (kW) | 310 | 313 | 320 | 322 | 376 | 385 |
| Dimensions (L×W×H) (m) | 17.0×4.0×4.0 | 19.0×4.0×4.0 | 19.0×4.0×4.0 | 20.0×4.0×4.0 | 18.0×4.0×4.0 | 20.0×4.0×4.0 |
| Machine weight (t) | 54 | 64 | 60 | 70 | 63 | 65 |
