Magnetic Separator

  • Magnetic Separator
  • Magnetic Separator
  • Magnetic Separator

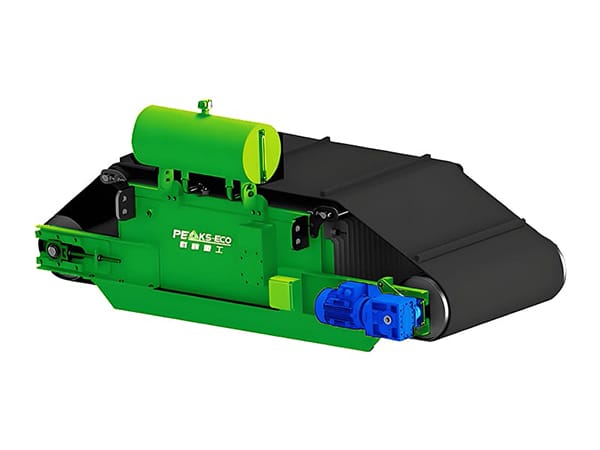

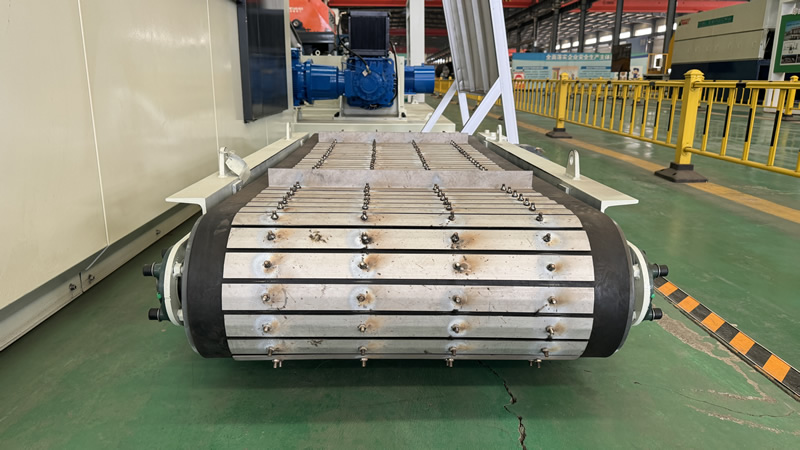

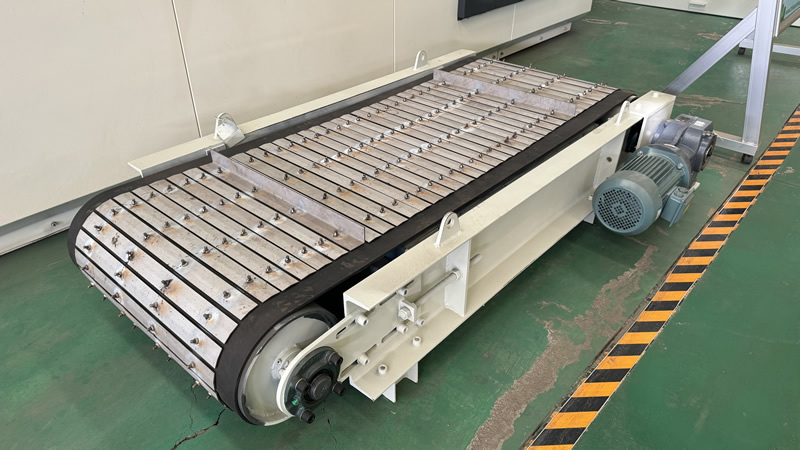

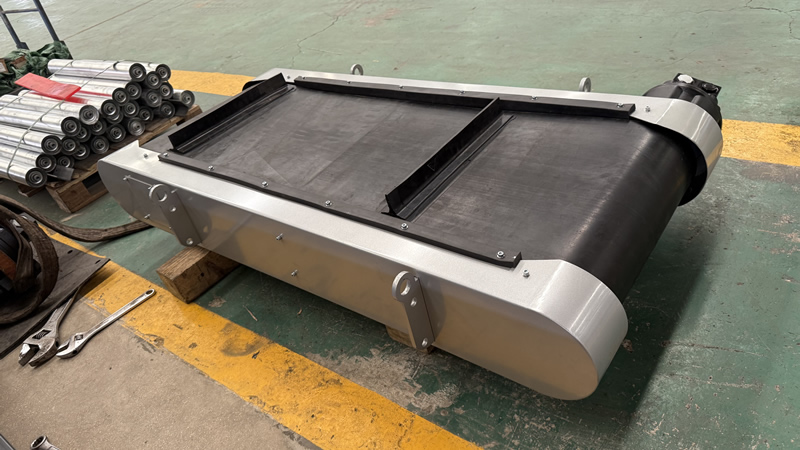

Our magnetic separators are utilized for separating ferrous metals from waste with high-efficiency using a permanent magnet that operates without a motor drive. The conveyor belt rotates around the high-powered permanent magnet to effectively remove products such as steel wire, nails, and gas tanks. The magnetic separator is produced using demagnetized steel to prevent the attraction of ferrous items to the separator.

The magnetic separator features a specialized design that prevents foreign materials from sticking to the conveyor belts. This considerably reduces belt wear and maintenance costs.

Application

Magnetic separators are often applied in the sorting lines of operations in the following industries: MRF, MBT, cement, steel making, and mining. Separating ferrous metals from various waste mixtures allows operators to take these metals and recycle them as needed.

Features
  • High separation efficiency
  • Non-magnetic frame
  • Roller bearing protection device
  • Wear-proof conveyor belt structure
  • Easy to maintain
Custom options
  • Size
  • Motor configuration
Recommended models
Belt width mm 800 1000 1200 1400 1600
Belt speed m/s < 2.5 < 2.5 < 2.5 < 2.5 < 2.5
Magnetic field intensity Gs >900 >900 >900 >900 >900
Power KW 1.5 1.5 3 3 3
Legth mm 1900 2100 2300 2500 2700
Width mm 1100 1300 1500 1700 1880
High mm 675 675 675 875 950
