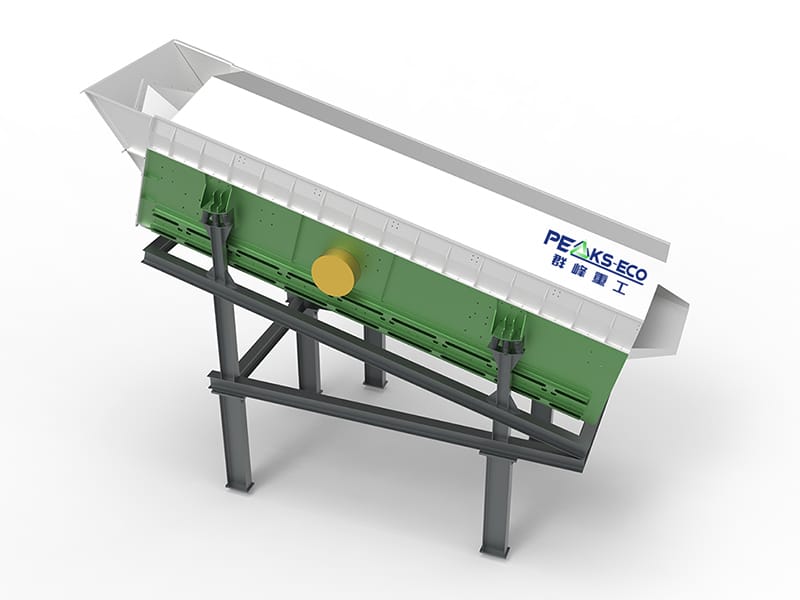

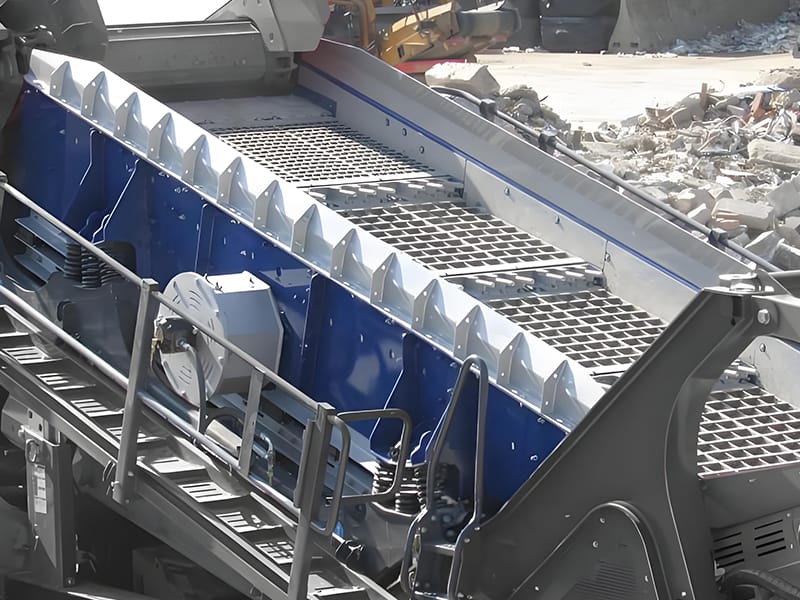

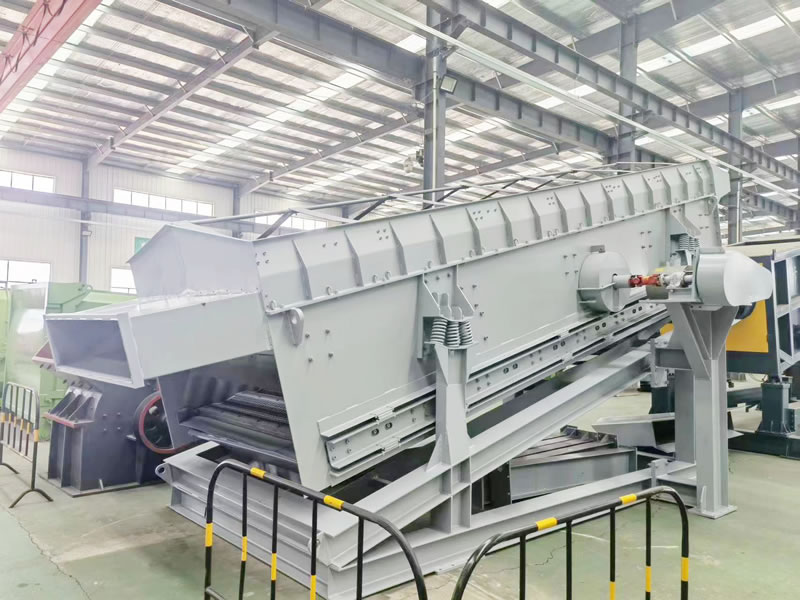

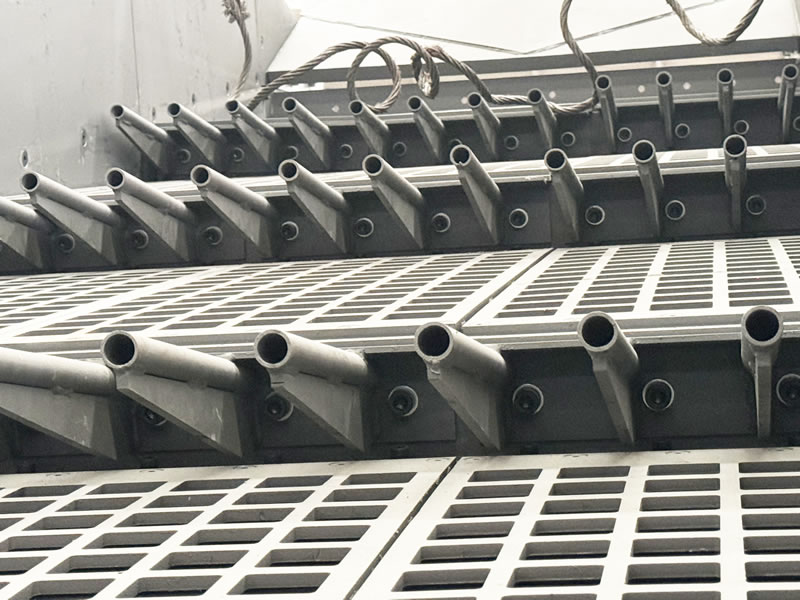

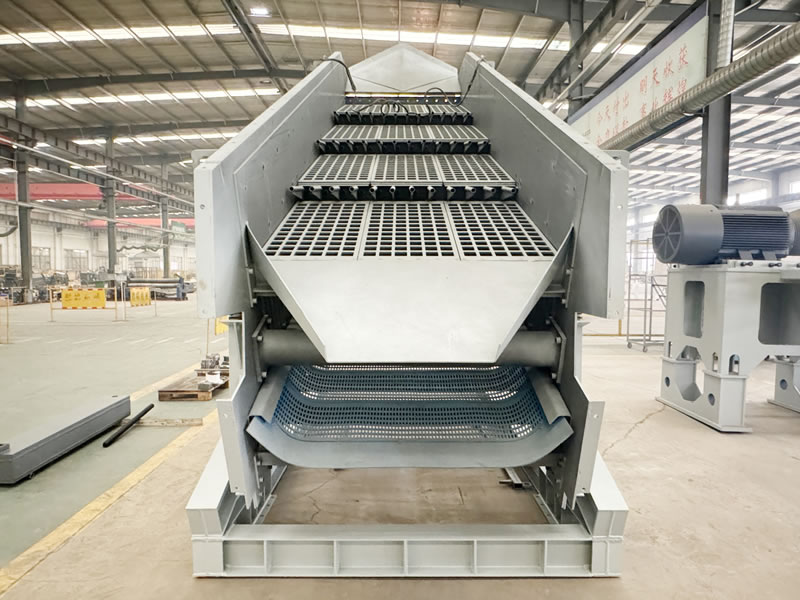

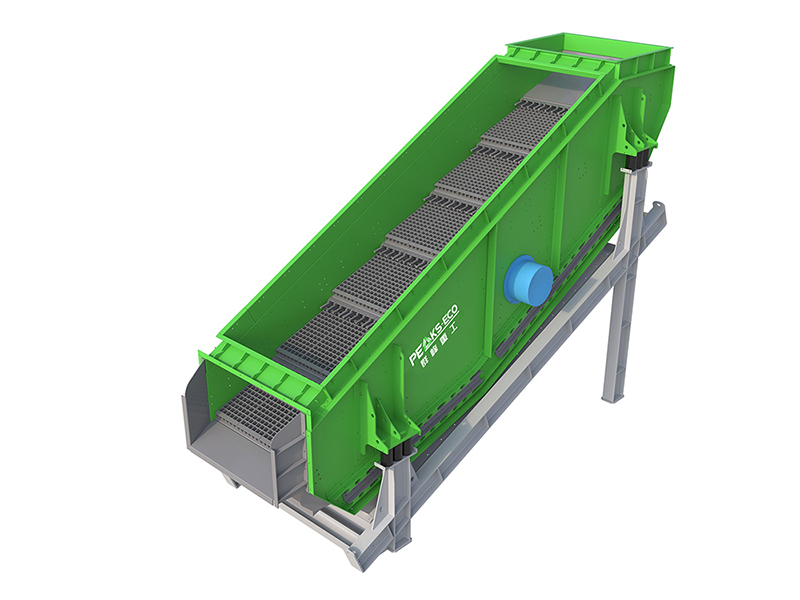

Combi vibrating screen(two-stage waste screen) performs two-stage screening in a single operation and consists of a frame and screens installed at an incline. Combining stepped screen plates with multi-level composite screening technology, it vibrates to separate materials of different types using primary and secondary screens. It offers high screening efficiency, adjustable speed, and anti-clogging features, making it ideal for processing construction waste and incinerator ash. Using the composite screen, materials are classified into particle sizes of 0-31.5mm, 31.5-100mm, and over 100mm.
| Capacity | 60t/h |
| Density | 0.4-0.7t/m³ |
| Screening hole size | 31.5mm/100mm |
| Single layer screening plate material | DILLIDUR-400V |
| Bottom screening mesh material | Highly elastic, wear-resistant and corrosion-resistant polyurethane screen |
| Efficiency | 90% |
| Power supply | 380V/50Hz |
| Noise level | ≤85dB |
| Machine weight | 16.5T |
