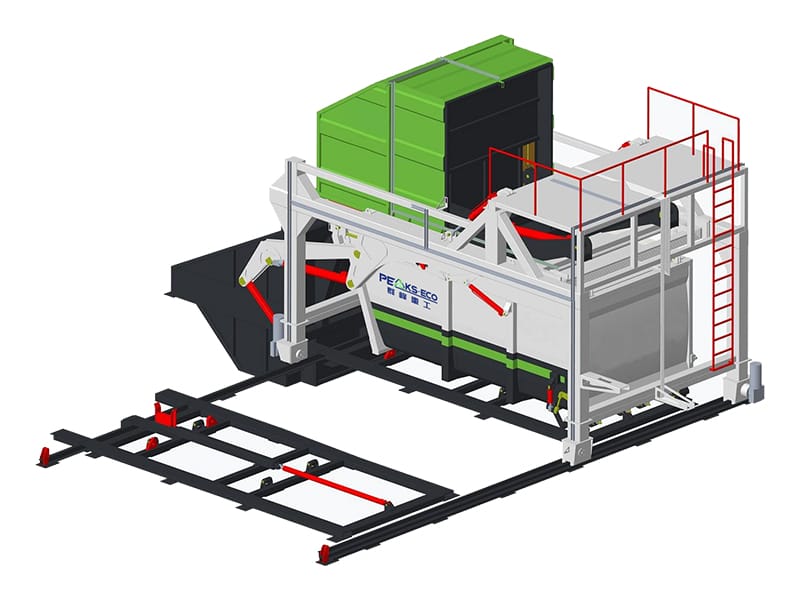

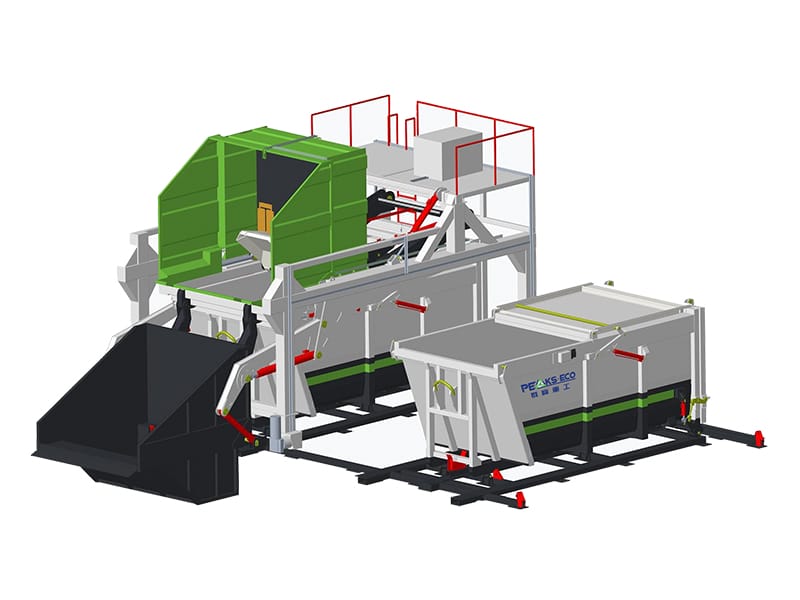

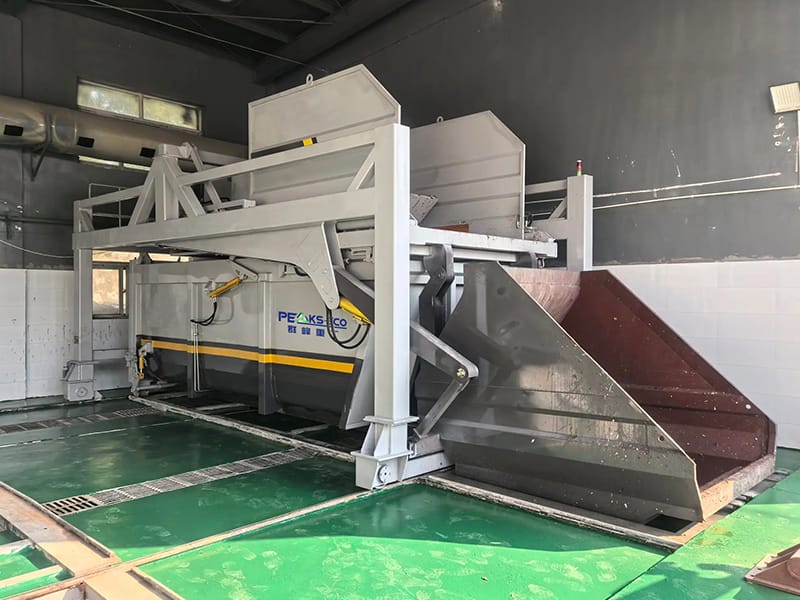

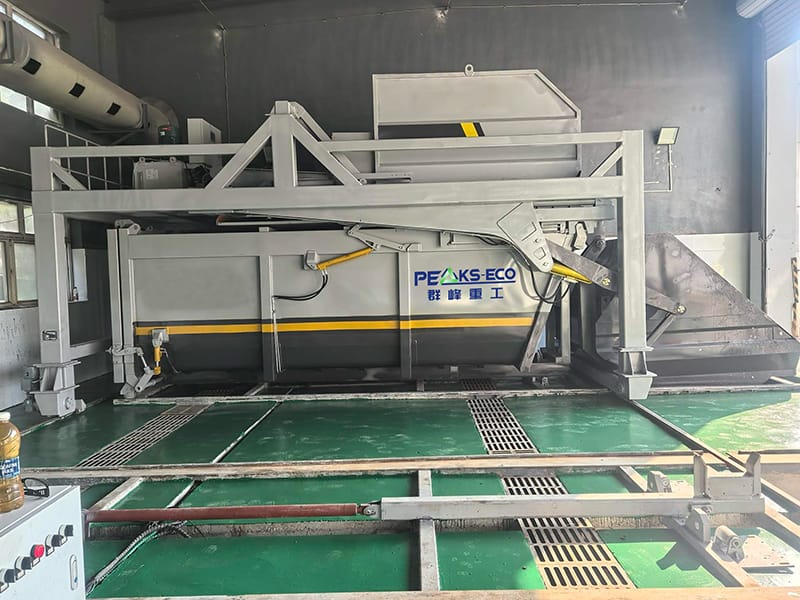

Our garbage compression station adopts a highly efficient waste handling solution that combines horizontal compression technology with hook-lift truck hoists, optimizing both performance and operational convenience. The system features a two-level layout—with the compactor installed on the first level and the transfer vehicle unloading through a second-level discharge port—maximizing spatial efficiency and workflow.
To ensure optimal working conditions and operational safety, the compression station is also equipped with a suite of advanced auxiliary systems, including a centralized control system, real-time monitoring system, exhaust and atomized deodorization systems, and a high-pressure cleaning unit. These features not only enhance environmental compliance but also greatly improve the cleanliness and comfort of the transfer station workspace.
| Pusher head Brinell hardness | 450HB |
| Pusher head tensile strength | 1320N/mm³ |
| Processing capacity | 40t/h |
| Garbage volume per compression cycle | 4m³ |
| System pressure | 25Mpa |
| Strong pushing pressure | 21Mpa |
| Max. compression force | 500kN |
| Max. compression stroke | 3600mm |
| Compression cycle time | 34.6S |
| Compressed garbage density | 0.8t/m³ |
| Compression chamber volume | 4m³ |
| Installed power | 22kW |
| Garbage box volume | 22m³ |
| Overall dimensions | 6100×2500×2500mm |
