Double-shaft primary shredder is used for the size reduction of large materials and solid waste pre-shredding, with shearing, chopping, tearing, and pressing. Engineered to perform durability and minimize maintenance costs, our double-shaft primary shredders can easily handle complex mixed solid waste, unsorted household garbage, construction debris, or industrial waste. The shredders designed by our company boost operational efficiency and processing capabilities.
Shredder table size | 4072×2300mm |
Shredding area | 2420×2000mm |

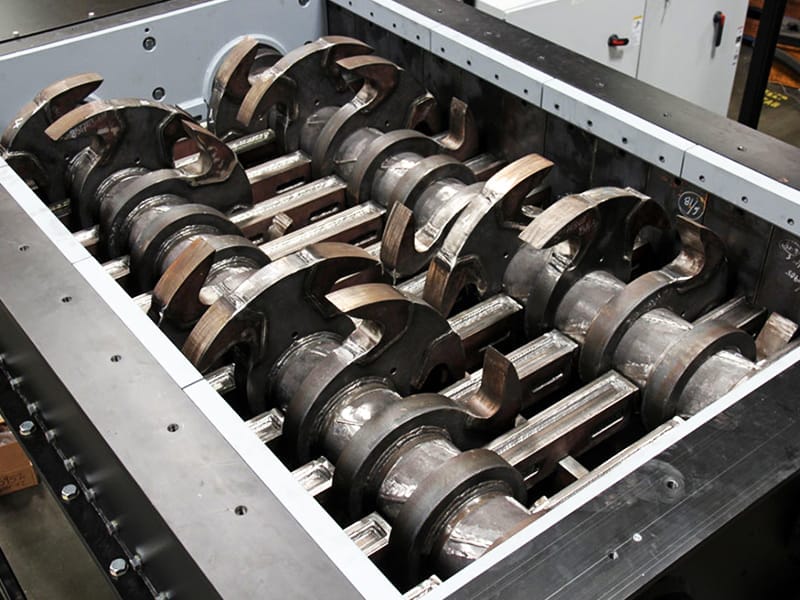

Number of shaft | 2 |
Number of rotating cutters | 2×9pcs (welded on the shaft) |
Cutter thickness | 80mm (Hardox 500) |
Cutter teeth arrangement | One forward, two backward (Hardox 500) |
Number of stationary cutters | 20pcs |
Rotation speed | 16-41rpm |
Speed control | Analogue speed control |
Gap between stationary cutters | 160mm |
Central lubrication | Standard configuration |
Power | 2×132kW |
Drive system | Dual hydrostatic drive |
Oil cooling system | Air cooling (water cooling is optional) |
Numerical control | Siemens S7 |
Remote control | Communication protocol (wire or wireless control is optional) |
Overload protection | Yes |
Shredding routine procedure | 6 |
Hour count | Yes |
Color | Gray RAL 9002 |
Iron gray RAL 7011 | |
Particle size | 90% < 250mm (different material particle size measurement results can be provided) |
